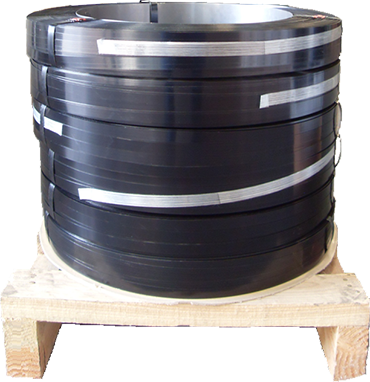

Steel Strappings
Regular Duty Straps
Strap Size Avr.Tensile Strength Coil Winding Coil Weight Coil
Width Thickness
inch mm inch mm N/mm2 R M J Ibs I.D O.D
1/2 12.7 0.015 0.40 880 o o 90 ~ 105
(40 ~ 45Kgs)		 Mill Wound
[Oscillated Wound]
406mm / 600mm

Ribbon Wound
300mm / 550mm
or
406mm / 650mm

Jumbo Wound
406mm / 750mm
0.020 0.50 850 o o
0.023 0.60 850 o o
5/8 16.0 0.015 0.40 950 o o 90 ~ 105
(40 ~ 45Kgs)
0.017 0.45 950 o o
0.020 0.50 850 o o
0.023 0.60 850 o o
3/4 19.0 0.015 0.40 850 o o 90 ~ 105
(40 ~ 45Kgs)
0.020 0.50 850 o o
0.022 0.55 850 o o
0.023 0.60 850 o o
0.028 0.70 800 o o
0.031 0.80 800 o o
0.035 0.90 800 o o
1 25.0 0.035 0.90 800 o o 90 ~ 105
(40 ~ 45Kgs)
0.044 1.00 800 o o
1-1/4 32.0 0.031 0.80 800 o o 90 ~ 105
(40 ~ 45Kgs)
0.035 0.90 800 o o
0.044 1.00 800 o o

M = Mill(Oscillated) Wound, R = Ribbon wound, J = Jumbo wound

High Tensile Straps
Strap Size Avr.Tensile Strength Coil Winding Coil Weight Coil
Width Thickness
inch mm inch mm N/mm2 R M J Ibs I.D O.D
1/2 12.7 0.020 0.50 1030 o o 90 ~ 105
(40 ~ 45Kgs)		 Mill Wound
[Oscillated Wound]
406mm / 600mm

Ribbon Wound
300mm / 550mm
or
406mm / 650mm

Jumbo Wound
406mm / 750mm
0.023 0.60 1030 o o
5/8 16.0 0.020 0.50 1030 o o 90 ~ 105
(40 ~ 45Kgs)
0.023 0.60 1030 o o
3/4 19.0 0.020 0.50 1030 o o 90 ~ 105
(40 ~ 45Kgs)
0.023 0.60 1030 o o
0.025 0.64 1030 o o
0.031 0.80 1030 o o
1-1/4 32.0 0.031 0.80 1030 o o 90 ~ 105
(40 ~ 45Kgs)
0.035 0.90 1030 o o

For customized straps, you may contact our sales representative.
